Station Test Equipment: Three Useful Instruments
A well-equipped amateur station benefits from three practical tools: a multimeter, a bench SWR/power meter, and an antenna analyzer. Each answers a different question. Build your bench over time; access to a club’s or another operator’s instrument can help when you are getting started.
Multimeter — Check Power and Connections
A multimeter measures electrical quantities such as DC voltage and resistance; its continuity function helps you find whether a connection is made or open. Use it to check supply voltage and polarity, trace a cable, look for a short, and perform the N2EME SDR Switch continuity tests.
At the bench: is the 12 V supply present, and does the switch make the expected connection when PTT changes? Use voltage mode for supply measurements and resistance/continuity mode only on the appropriate isolated test points. Follow the switch procedure; do not apply transmitter RF to the meter. A continuity beep does not establish RF isolation or cable performance at radio frequencies.
Bench SWR/Power Meter — Watch the Transmit Path
At W3UJ: I use the Daiwa CN-901 and Daiwa CN-501V SWR/power meters. Select the meter and range appropriate to the transmit frequency and power; confirm the specifications on the exact model.
An inline SWR/power meter sits in the coaxial transmit path and measures forward and reflected RF power; depending on its design, it displays or lets you determine SWR (Standing Wave Ratio). It helps you monitor output and recognize a change in the match while transmitting.
At the operating position: am I producing the intended output, and has reflected power changed? Choose a meter rated for the frequency range and power you use, connect its transmitter and antenna ports correctly, and use the appropriate power range and average/PEP mode. Its readings describe conditions at the meter’s location. A low SWR does not prove an antenna radiates efficiently, and a meter on the radio side of a tuner does not directly show the antenna’s untuned match.
Antenna Analyzer — Tune and Check the Antenna System
An antenna analyzer supplies its own low-level test signal and measures the antenna/feedline system across a selected frequency range. Typical displays include SWR and impedance; additional functions depend on the instrument. Sweeping across a band helps you see where the system is best matched and how that match changes as you adjust an antenna.
Use It to Guide Adjustments
Instead of guessing, sweep the intended band, save the result, change one thing, and sweep again. Depending on the antenna design, useful adjustments include element or wire length, loading-coil settings, mounting height, placement, and the length, number or arrangement of counterpoise wires or radials.
Counterpoise and radials: these provide part of the RF return-current system for antennas that require them. Their length and placement can affect the measured impedance and SWR. Follow the antenna’s design instructions; there is no single counterpoise length or radial arrangement that suits every antenna. They are not a substitute for protective grounding and bonding.
- Assemble the complete antenna, including the specified counterpoise or radials, in its intended position.
- Disconnect the transmitter and connect the analyzer at a documented measurement point. Save a baseline sweep.
- Make one small, reversible adjustment. Compare the same frequency span and connection point.
- Record what changed and retain the arrangement that meets the design’s matching goals. Confirm operation within the equipment ratings afterward.
The analyzer helps you decide what to adjust; an antenna tuner is the separate matching device. A lowest-SWR point is not automatically the antenna’s resonance, and improving SWR alone does not prove improved radiated efficiency. Keep the feedline common-mode current discussion in mind when readings change with cable position.
Manufacturer example: analyzer-assisted tuning with a counterpoise ↗
During a build: where is the useful matched range, and did changing wire length, placement or a connector improve it? Disconnect the system under test from the transmitter, calibrate or set the measurement reference as the instrument requires, and record where you connected it. Never transmit into the analyzer. A suitable calibrated VNA can also perform antenna measurements, but its setup and interpretation require additional learning. An SWR curve alone does not measure receiving SNR or radiated efficiency.
| Your Question | Reach For |
|---|---|
| Is the supply voltage correct? Is this connection open or closed? | Multimeter |
| What forward/reflected power and SWR do I see during transmission? | Bench SWR/power meter |
| How does the antenna/feedline match change across the band? | Antenna analyzer |
These tools complement PTT protection. They help you build and diagnose the station; none replaces properly wired and verified SDR receiver-protection hardware.
Manufacturer explanations: Multimeter functions ↗ · Inline SWR/power meter instructions (PDF) ↗ · Antenna analyzer functions ↗. These illustrate instrument types, not required brands or a list of equipment owned at W3UJ.
Learn to read the crossed needles, with pictures and worked examples →
At W3UJ: I use the RigExpert Stick XPro antenna and cable analyzer. Follow the first-sweep walkthrough below.
How to Read a Cross-Needle SWR/Power Meter
Two needles give you three readings: forward watts, reflected watts, and SWR. Read each needle against its own power scale; read SWR where the needles cross. W3UJ uses a Daiwa CN-901 and CN-501V.
First, Choose the Right Range
With transmission stopped, confirm the meter covers your operating frequency, its TR/input faces the transmitter, and its ANT/output faces the load or antenna system. Start with a power range above the expected output. For example, use the CN-501V’s 200 W range for a 50 W VHF signal, not its 20 W range. Its 140–525 MHz coverage makes it a VHF/UHF meter, not an HF meter.
Read the scale and any multiplier specified for the selected range. The CN-901 family includes different ranges and modes: follow the exact suffix and front-panel markings on your unit.
Then Take These Three Readings
- Forward power: follow the needle associated with FWD/Forward to its watts scale. This is power traveling toward the load at the meter.
- Reflected power: follow the other needle to REF/Reflected. Read its own scale; do not assume it uses the same numbers or multiplier as forward power.
- SWR: find the intersection of the needles and read the printed SWR curve through that point. Estimate between curves when needed. SWR is a ratio, not watts, and you do not add the needle readings.
Follow the example: follow the needle pointing to the FORWARD scale for forward watts, and the other needle to the REFLECTED scale for reflected watts. Read SWR from the printed line where they cross, not where either needle meets an outer watts scale. The two watts scales have different graduations. Apply the selected range’s indicated multiplier to each power reading; do not multiply the SWR ratio. These values are the manufacturer’s example, not a suggested transmit-power setting.
Official CN-901 manual and original worked example (PDF) ↗
What Different Readings Mean

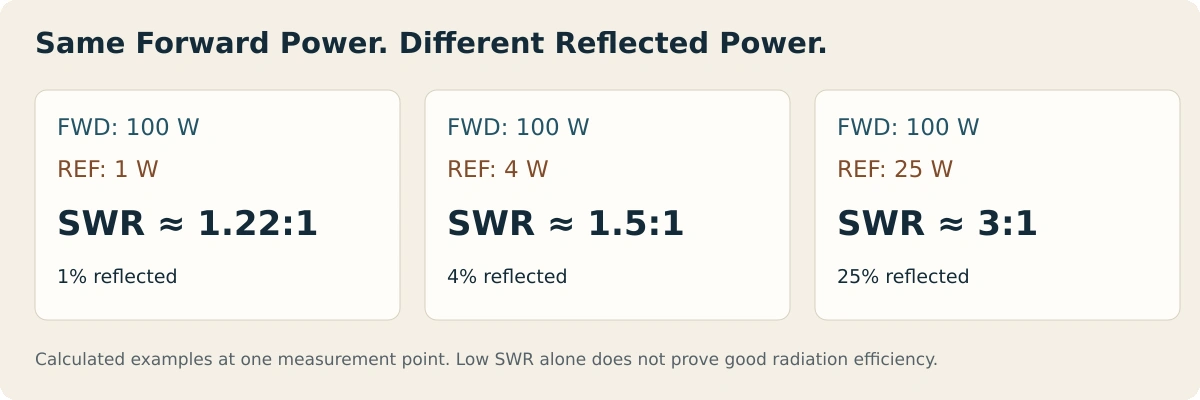

For checking the arithmetic: SWR = (1 + √(REF/FWD)) / (1 − √(REF/FWD)), using comparable forward and reflected power readings at the same point, with FWD greater than REF. The crossing scale saves you doing this calculation at the bench.
Make the Reading Easy to Interpret
For a steady SWR check, use the manufacturer’s recommended average-power mode and a suitable steady signal within the ratings of the radio, meter and load. Normal SSB speech moves the needles, so an instantaneous crossing can be difficult to read. PEP behavior is model-dependent; Daiwa warns that some CN-901 HP modes do not simultaneously measure reflected power. Do not interpret that mode as an ordinary two-needle SWR check.
On FT8: read output during the actual transmit interval. Keep the antenna system’s digital-mode power limit in mind. A zero reading while receiving is not an antenna fault. Low SWR does not prove good radiation efficiency or SDR receiver protection.
Official CN-501 series instructions (PDF) ↗ · Daiwa meter models and mode notes ↗ · Return to Station Test Equipment ↑
Using the RigExpert Stick XPro Antenna Analyzer
At W3UJ, I use the RigExpert Stick XPro. It helps answer a different question from the Daiwa meters: how does the antenna system behave across a range of frequencies before I transmit?
What It Does
The handheld analyzer supplies its own small test signal and measures the connected antenna/feedline system. It covers 0.1–1000 MHz and displays SWR, resistance (R), reactance (X) and other impedance information. Cable tools and a distance-to-fault display support more advanced troubleshooting. USB operation with AntScope2 provides another way to work with measurements.
Analyzer first; SWR meter during operation. Use the Stick XPro to investigate the matched bandwidth and guide adjustments. After removing it and reconnecting the station correctly, use the appropriate Daiwa meter to check forward/reflected power during a low-power transmit check. The analyzer does not measure transmitter output power and must never remain connected to a transmitting RF path.
Your First Sweep: Start with HAM Mode
- Prepare the antenna as it will be used. Include its intended feedline, transformer, choke and counterpoise or radials. Charge the analyzer. Turn off and disconnect the transceiver from the system under test; prevent another radio from transmitting into the connected path. Follow the manual’s static and RF precautions.
- Choose the measurement point. Connecting at the station end of the coax checks the system presented to the radio. A measurement directly at the antenna feedpoint answers a different question. Note which you use and keep that point consistent when comparing changes. Fit the correct adapter to the analyzer’s N connector.
- Select HAM mode. From the main menu, press the left-arrow key. Use the left/right arrows to select the desired amateur band. The analyzer sweeps automatically. Press the ▶ measurement key once to repeat, or twice quickly for continuous sweeps. A long press opens contextual help.
- Read the curve, not just its lowest point. Note the minimum SWR and its frequency, then check the frequencies you actually intend to operate. A good match on one frequency may cover only a small part of the band.
- Change one thing and repeat. Adjust an appropriate variable—wire length, coil setting, antenna height or counterpoise arrangement—then sweep the same band from the same connection point. Record the before/after result so you know which change helped.
- Finish the measurement before transmitting. Disconnect and put away the analyzer, restore the station’s RF routing and verified PTT protection, then make a low-power check within the antenna and equipment ratings.
Make Sense of the Result
Example: if your operating frequency lies outside the low-SWR portion of the curve, investigate the antenna setup rather than chasing a single attractive minimum elsewhere. Near-zero reactance indicates resonance at the measurement point; the lowest SWR and resonance need not occur at exactly the same frequency. Feedline length, loss and the measurement point affect interpretation.
A low SWR shows a match, not proof of good radiation, low receive noise or safe digital-mode power handling. Lossy feedline can make the station-end SWR look better. An analyzer also cannot certify a common-mode choke’s suppression simply by showing a low antenna SWR. Read the common-mode choke guidance →
Explore Further When Needed
Free mode lets you choose the sweep center and span. Single mode examines one frequency, including R and X. Multé offers a quick multiband match survey; its stars describe SWR, not antenna efficiency. For cable fault-location work, use the cable’s correct velocity factor. Follow RigExpert’s calibration instructions when using adapters or moving the measurement reference.
Keep a useful record: antenna configuration, feedline and measurement point, sweep range, frequency of minimum SWR, SWR at your operating frequency, and the one adjustment made. This helps with portable mast setups and counterpoise experiments as well as permanent antennas. Return to evaluating an antenna for your space →
Manufacturer references: Stick XPro operating manual (PDF) ↗ · Specifications and AntScope2 downloads ↗. Controls and modes above follow the Stick XPro manual; consult the manual for your firmware if screens differ.
Common-Mode Chokes: Keep Unwanted RF Off the Cables
A common-mode choke impedes unwanted RF current on the outside of a coax shield. It can help reduce feedline radiation and some noise picked up along the cable. It is an RFI-control component, rather than a measuring instrument.
Plan placement for the actual antenna: the feedpoint and station end are common locations to consider, but end-fed systems need particular attention to their intended return-current path. Choose a design with documented choking performance over your bands and a suitable power/duty-cycle rating. Coiling a few turns of coax is not a universal broadband solution.
Ferrites on USB, audio and control cables address common-mode RF on those cables; they complement a feedline choke. Mix, size, turns and placement matter. A choke does not guarantee lower SWR, remove every noise source, provide lightning protection, or replace PTT-controlled SDR protection.
Compare before/after behavior with the same settings. An SWR meter or ordinary continuity check alone does not measure choke performance.
Feedline choke selection ↗ · ARRL RFI resources ↗ · USB disconnects and station RF →
LDG RU-1:1 — An Inline Common-Mode Choke

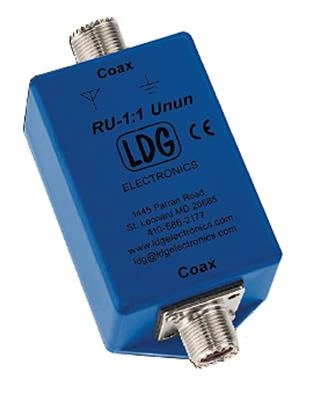

LDG describes the RU-1:1 Unun as a common-mode RF choke intended to reduce unwanted RF on the coax shield, including short feedline runs and non-resonant antenna installations. Its two SO-239 sockets accept coax connections; the 1:1 designation means it is not intended to transform a high antenna impedance down to 50 ohms.
Where it fits: in the coax feedline at the location appropriate to the antenna’s intended return-current path. Follow the antenna and choke instructions rather than choosing placement solely for convenience. Confirm the manufacturer’s frequency, power and duty-cycle limits for your use.
It can help address feedline-related RF problems, but does not tune the antenna, supply missing radials, guarantee lower noise or replace receiver PTT protection. An SWR reading alone cannot confirm its choking effectiveness. Official LDG product reference ↗
Compare its role with the Chameleon feedpoint adapter and loading coil →
